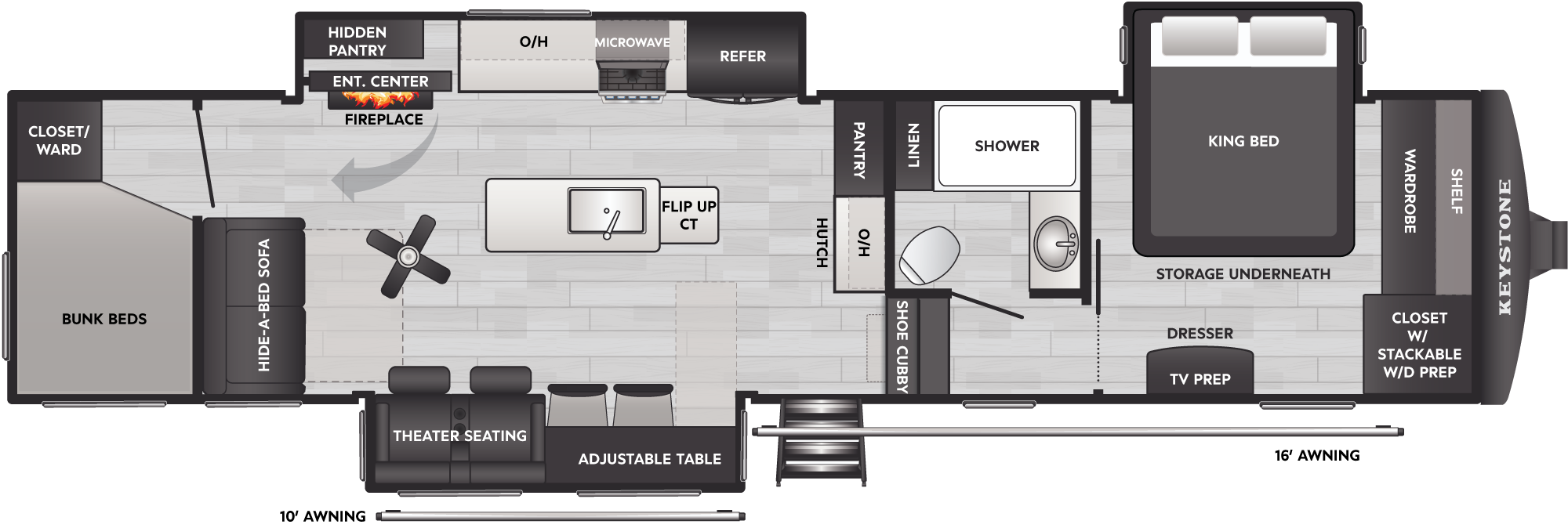

Floorplan of RV model 3500RDB
Specifications
Specification Name Specification Value
RV Type Fifth Wheel
Sleeping Capacity 6
Number of Propane Tanks 2
Refrigerator Size 16 cu ft

Standards & Options*

Standard
Optional

*Throughout the year, Keystone RV may modify model features, floor plans, and specifications. Website data typically reflects the most recent production run, however, any or all of these items are subject to change without notice. Please check with your dealer to for the details specific to the unit you are purchasing. You should also read all labels that are on each trailer for information concerning the safe operation of the unit and its components, actual weight(s), cargo carrying capacity, and tire information. MAKE SURE YOUR TOW VEHICLE IS COMPATIBLE WITH YOUR KEYSTONE RV. Owners of Keystone recreational vehicles are solely responsible for the selection and proper use of tow vehicles. For more information about the safe operation and use of various systems, Keystone service warranties and how to obtain service, extended use, towing, and maintenance, click here to review the Keystone Owner’s Manual. Component and appliance manuals can be found in the trailer.

Decor

Teak

Teak
Cabinets
Sofa
Countertops
Flooring
Accent Fabric

Click swatches for close-up view.

Decor

Sand

Sand
Cabinets
Countertops
Flooring
Accent Fabric

Click swatches for close-up view.
Floorplan of RV model 3500RDB

3500RDB

Rear Double Bunk / Hidden Pantry / King Bed

New Floorplan
Floorplan of RV model 3500RDB
    print only
    Floorplan of RV model 3500RDB
    Specifications
    Specification Name Specification Value
    RV Type Fifth Wheel
    Sleeping Capacity 6
    Number of Propane Tanks 2
    Refrigerator Size 16 cu ft

    Standards & Options

    Exterior

    • Enhanced Exterior Graphics w/ Integrated print
    • High Gloss Fiberglass Exterior
    • S-Lock Skirt Metal System
    • Full Body Paint
    • Floor plan specific 100" wide-body frame w/ full width outriggers
    • MaxTurnâ„¢ technology w/ Road Armorâ„¢
    • Hitch Visionâ„¢
    • 2" aluminum framed and laminated sidewalls
    • Tinted safety glass windows
    • Automotive-grade painted fiberglass front cap w/ KeyShieldâ„¢ protection
    • Fully walkable roof
    • Dual layer insulation
    • Rear ladder prep
    • Equal torsion cable slides w/ manual override
    • Thermal package (performs from 0-100 degrees)
    • Heated & enclosed underbelly w/ astro-foil insulation
    • Dexter® E-Z Lube axles with never-adjust brakes (6 year warranty)
    • Aluminum wheels w/ lifetime warranty
    • One touch 4-point leveling system w/ return hookup memory
    • 30" friction hinge entry doors
    • Suburban StowAway Entry Step with 33% Larger first step
    • High Performance G-Rated Radial Tires w/ Balancing Beads
    • 2" Receiver Hitch w/ 4 way hook up - 3,000lb Limit
    • Heated pass-through storage w/ lockable slam latch baggage doors
    • Seal-In-Place Locking Slam Latch Baggage Doors
    • Back-up camera prep
    • Battery disconnect
    • Outside shower w/ hot & cold water
    • Over-sized roto cast holding tanks with best in class capacities
    • LP quick connect
    • Electric awning with friction hinge adjustment, LED light strip, & manual override
    • Black tank flush

    Interior

    • Congoleum® vinyl flooring w/ one-piece Dyna Spanâ„¢ marine grade decking
    • Black out night shades
    • Floating style made deck steps with Shoe storage
    • Designer upholstered window valances
    • Residential style screwed & glued cabinetry
    • Theater seating w/ USB Charging
    • Thomas Payne luxury collection furniture
    • Hidden Pantry Behind Entertainment Ctr.
    • 5.5K BTU electric fireplace w/ thermostat control & remote
    • Maxx Air® power vent fan(s) w/ rain sensor

    Keystone Exclusives

    • 3-year limited structural warranty
    • 1-year limited base warranty
    • Color-coded unified wiring standard
    • Tuf-Lokâ„¢ thermoplastic duct joiners
    • KeyTVâ„¢ multisource signal controller
    • In-floor heating ducts
    • Tru-fitâ„¢ slide construction

    Kitchen Features

    • 22" deep drawers w/ full extension heavy-duty guides
    • Solid surface countertops
    • Deep single-basin stainless steel industrial sink
    • High-rise pull out faucet & sprayer
    • Free Standing Dinette with Ottoman and 2 Chairs
    • Wood beam style pendant light soffit
    • Pendant lights over kitchen island
    • 4 Position Table / Desk

    Appliances & Utilities

    • (2) 30 lb. LP tanks w/ auto changeover
    • (2) Air conditioning units
    • 3rd. A/C
    • 30K BTU Furnace
    • Contoure tankless on-demand 65,000BTU water heater
    • Premium entertainment center w/ HD LED TV, Multi Zone Stereo, exterior TV hook-up & speakers
    • 16 Cu. Ft. 12V refrigerator
    • Stainless steel microwave w/carousel
    • Oversized 30" over the range microwave
    • Free Standing Residential Gas Range / Oven
    • Dishwasher Prep
    • Stackable washer/dryer prep
    • High Output LED Ceiling Lights
    • Traditional Central Command Center
    • Gray Tank Food Away Flush (Kitchen Sink Gray Tank)

    Bedroom Features

    • 70" x 80" king bed w/ gas strut storage
    • LED reading lights above bed
    • Upgraded bedspread
    • TV hook-up

    Bathroom Features

    • Large 48 x 30 shower
    • 30 x 22 Shower Skylight
    • Marbled Shower Surround
    • Porcelain foot flush toilet

    Safety

    • Breakaway switch
    • GFI receptacles
    • Carbon monoxide detector
    • Smoke detector
    • Fire extinguisher
