431

Triple Axle, 13'6" Garage, 2 Baths, Large Master Suite

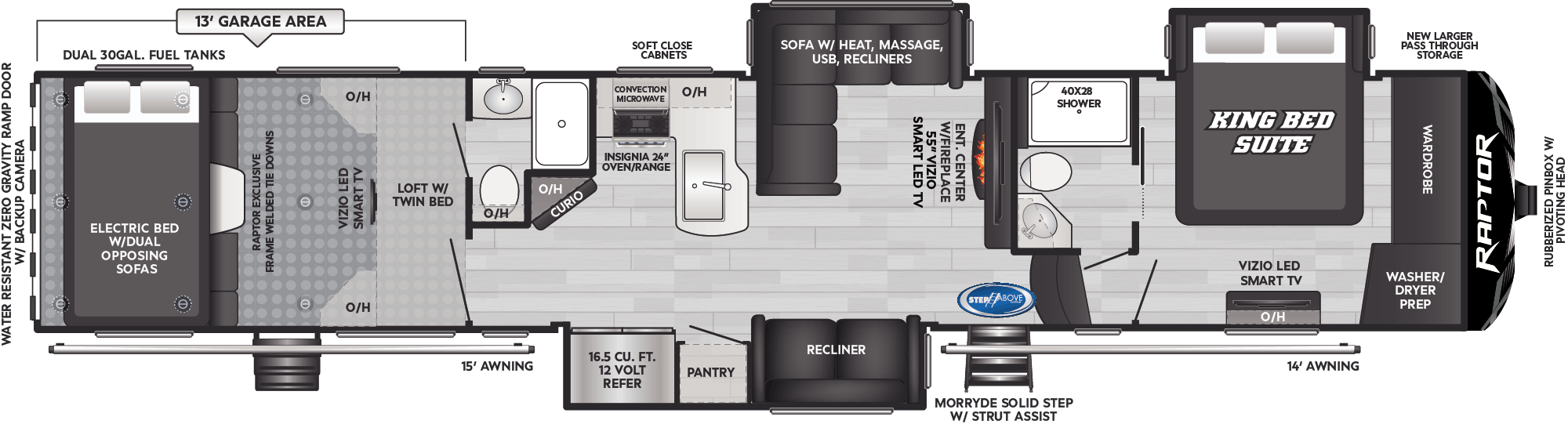

Floorplan of RV model 431
MSRP:$144,295*
Base price. Does not include freight, title, tax, options or dealer fees.
Build & Price
Floorplan of RV model 431
Specifications
Specification Name Specification Value
RV Type Toy Hauler, Fifth Wheel
MSRP $144,295
Shipping Weight 16,316 lb.
Carrying Capacity 3,684 lb.
Hitch 3,775 lb.
Length 44 ft 11 in
Height 13 ft 6 in
Toy Hauler Garage Size 13 ft 6 in
Tire-Size ST235/80R16G
Fresh Water 94 gal
Gray Water 82 gal
Waste Water 82 gal
Sleeping Capacity 7
Number of Propane Tanks 2
LPG 60 lb.
Refrigerator Size 16.50 cu ft

Standards & Options*

Standard
Optional

*Throughout the year, Keystone RV may modify model features, floor plans, and specifications. Website data typically reflects the most recent production run, however, any or all of these items are subject to change without notice. Please check with your dealer to for the details specific to the unit you are purchasing. You should also read all labels that are on each trailer for information concerning the safe operation of the unit and its components, actual weight(s), cargo carrying capacity, and tire information. MAKE SURE YOUR TOW VEHICLE IS COMPATIBLE WITH YOUR KEYSTONE RV. Owners of Keystone recreational vehicles are solely responsible for the selection and proper use of tow vehicles. For more information about the safe operation and use of various systems, Keystone service warranties and how to obtain service, extended use, towing, and maintenance, click here to review the Keystone Owner’s Manual. Component and appliance manuals can be found in the trailer.

Floorplan of RV model 431

431

Triple Axle, 13'6" Garage, 2 Baths, Large Master Suite

Floorplan of RV model 431
MSRP:$144,295*
Base price. Does not include freight, title, tax, options or dealer fees.
    Floorplan of RV model 431
    Specifications
    Specification Name Specification Value
    RV Type Toy Hauler, Fifth Wheel
    MSRP $144,295
    Shipping Weight 16,316 lb.
    Carrying Capacity 3,684 lb.
    Hitch 3,775 lb.
    Length 44 ft 11 in
    Height 13 ft 6 in
    Toy Hauler Garage Size 13 ft 6 in
    Tire-Size ST235/80R16G
    Fresh Water 94 gal
    Gray Water 82 gal
    Waste Water 82 gal
    Sleeping Capacity 7
    Number of Propane Tanks 2
    LPG 60 lb.
    Refrigerator Size 16.50 cu ft

    Standards & Options

    Exterior

    • 12" I-Beam frame
    • MaxTurnâ„¢ Technology w/ Heluxâ„¢ pin box
    • High-gloss exterior, laminated sidewalls w/ double-welded aluminum construction
    • Square tinted safety glass windows
    • Frameless dual-pane windows
    • Painted fiberglass cap w/ patented Key Shieldâ„¢ protection & LED lighting
    • Radius roof w/ 5" pre-engineered roof trusses and walkable rafters
    • 1-piece Alpha Super Flex TPO membrane (lifetime limited warranty)
    • Exterior ladder
    • Lippert through frame, rack and pinion expandable room system
    • Dexter® E-Z Lube® 7,000 lb axles w/ 12" x 2" self-adjusting electric brakes
    • MORryde CRE3000 suspension w/ wet bolts
    • H-rated tires (8-year warranty) w/ spare tire
    • 6-point hydraulic leveling system
    • 78" entry door w/ euro latch
    • Lippert collapsable quad step main entry and garage
    • Heated and lighted 105 Cu. Ft. pass through storage w/ 1" slam-latch doors
    • Furrion® wireless backup camera
    • Battery quick-disconnect
    • Convenience center (single-point for all system hook-ups)
    • Onan 5,500 watt gas generator (standard) w/ 30-gallon fuel tank
    • 173 gal. fresh, 104 gal. gray, 104 gal. waste water tanks
    • 50 Amp service
    • Outside shower- hot & cold w/ 25' coil hose
    • One-touch electric awnings w/ LED lights (2)
    • Solar prep port in convenience center

    Interior

    • Designer style vinyl flooring throughout
    • 8' tall living room and kitchen slides
    • Built in, pull-down window shade
    • Residential style wood trimmed windows
    • Beach wood with accent grey island
    • Thomas Payne® furniture equipped power recline, power lumbar and tilting headrest
    • New ceiling treatment w/ LED accent lighting
    • Fireplace with 5,000 BTU electric furnace

    Keystone Exclusives

    • 3-year limited structural warranty
    • 1-year limited base warranty
    • Color-coded unified wiring standard
    • 4G LTE and Wi-Fi prep
    • Tuf-Lokâ„¢ thermoplastic duct joiners
    • KeyTVâ„¢
    • In-floor heating ducts
    • Tru-fitâ„¢ slide construction

    Kitchen Features

    • Lasus 24" Range and Oven
    • Soft-close hardwood cabinetry w/ hidden hinges, 100 lb. full extension ball-bearing drawer glides
    • Solid-surface countertops
    • Large farmhouse style stainless steel kitchen sink w/ roll-up sink cover/drying rack
    • Upgraded residential pull-out kitchen faucet
    • Portable multi-use table
    • Stainless steel sink

    Appliances & Utilities

    • (2) 30 lb. LP tanks w/ quick disconnect
    • Omni-Chillâ„¢ 3/4 ton high efficiency (3) A/C's
    • 35K BTU gas furnace
    • Girard tankless on-demand water heater
    • 50" LED smart TV w/ Klipsch sound bar and 10" subwoofer
    • 50" LED smart TV w/ premium Bluetooth audio
    • 20 Cu. Ft. 12V refrigerator
    • 30" stainless steel convection microwave
    • 4-burner Lusso range and 24" stainless steel oven
    • Washer/dryer prep in master bedroom
    • Recessed LED can lighting throughout
    • Generation 3 iN-Command® smart automation system

    Bedroom Features

    • 68" x 76" king bed
    • New headboard with lighted accent panel
    • LED overhead reading lights
    • Outlets/USB on both sides of bed
    • Decorative bedspread & tufted pillows
    • LED smart TV in bedroom

    Bathroom Features

    • Pressed countertops
    • Fiberglass 1-piece shower surround, removable shower head, built-in skylight
    • Porcelain foot flush toilet

    Weather Package

    • Extreme Weather Package
    • 12V Tank Heaters
    • Heated, insulated, enclosed holding tanks

    Safety

    • Breakaway switch
    • GFI receptacles
    • Carbon monoxide detector
    • Smoke detector
    • Propane gas leak detector
    • Fire extinguisher

    Garage

    • Dyna Span® 1-piece floor decking (25-year warranty)
    • 5,000 lb Adjust-A-Track frame welded tie-downs
    • Tinted glass door w/ vapor seal
    • Lippert Power Play motorized ramp door
    • Rear-ramp patio w/ electric awning & side-entry steps
    • Three seasons glass patio door
    • 2nd full bath
    • Half-bath
    • 3rd A/C & ducted heat into garage
    • On-board fuel station (60-gal capacity)
    • Black powder coated ram air ventilation system
    • Loft access doors w/ 40" pull-down TV in garage
    • HappiJac® bed w/ flip down sofas
